Our force sensing joystick design is so unique it’s patented. For use in a multitude of platforms where flexibility and short prototyping cycles are important. Highly reliable and extremely robust in design, with sensitive components distanced from moving parts.
The force-sensing, limited displacement joystick does not rely on displacement, as with traditional joysticks, but rather an applied force, which is translated into a varying voltage signal via simple electronic circuitry. |
|
The circuitry can emulate the potentiometers of traditional joysticks, simplifying the interfacing process to multiple platforms, ranging from desktop PC’s to advanced process control computers. Applications include:
| • |
Commerecial and military flight simulation |
| • |
UAV/drone/robotics control |
| • |
Industrial control applications |
|
|
| |
| |
| Limited Displacement JoystickTM (LDJ) (a.k.a. RibbStickTM) |
| |
Our force sensing, limited displacement design concept, based on the real F-16 side-stick controller. Compatible with a customer provided Thrustmaster Cougar™ grip and electronic interface board, or adaptable to a real SSC grip through the use of the available LDJ-to-SSC adapter accessory. Features include:
| • |
Extremely rugged construction |
| • |
Low cost, affordable alternative to other designs |
| • |
Mounting plate adapts to high-fidelity cockpits, while providing flexibility for a variety of cockpit designs |
| • |
Full realistic SSC forces, adjustable through software |
| • |
Mechanical hysteresis is minimal (inability to return to dead center) |
|
|
|
| |
|
|
|
| Set-up is easy: Secure the assembly beneath the right console, plug the provided connectors into the Thrustmaster Cougar™ circuit board, and add your Cougar grip. Set your desired maximum forces and sensitivity through the Cougar Control Panel calibration app. |
| |
| |
| Accessories |

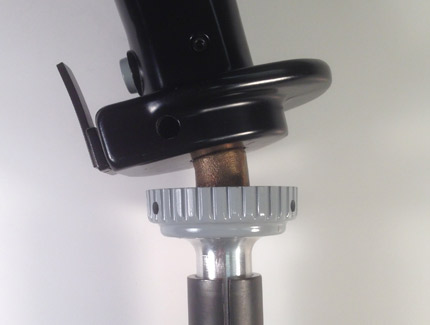

Thrustmaster CougarTM Tailpiece Adapter
This bronze cast adapter replaces the standard Cougar grip tailpiece and provides a realistic 13-degree forward lean to the grip. The tailpiece adapter accepts the original 5-pin, mini-DIN connector from the stock Cougar tailpiece, maintaining compatibility with the LDJ connector. |
|
|
|
| |
|
|
| |
|

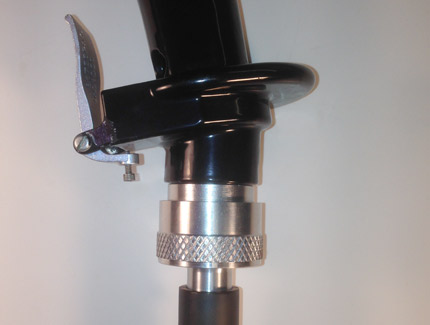

LDJ-to-SSC Adapter
This aluminum adapter allows the use of a real customer supplied F-16 SSC grip with the LDJ. The adapter does not include a wiring socket, but does incorporate a ½” pass-through hole for extending the wiring from the grip. |
|
 |
|
| |
|
|
| |
| Documentation |
| Click here to download the instructions to install our Joysticks. |
| |
| |
